RPA200

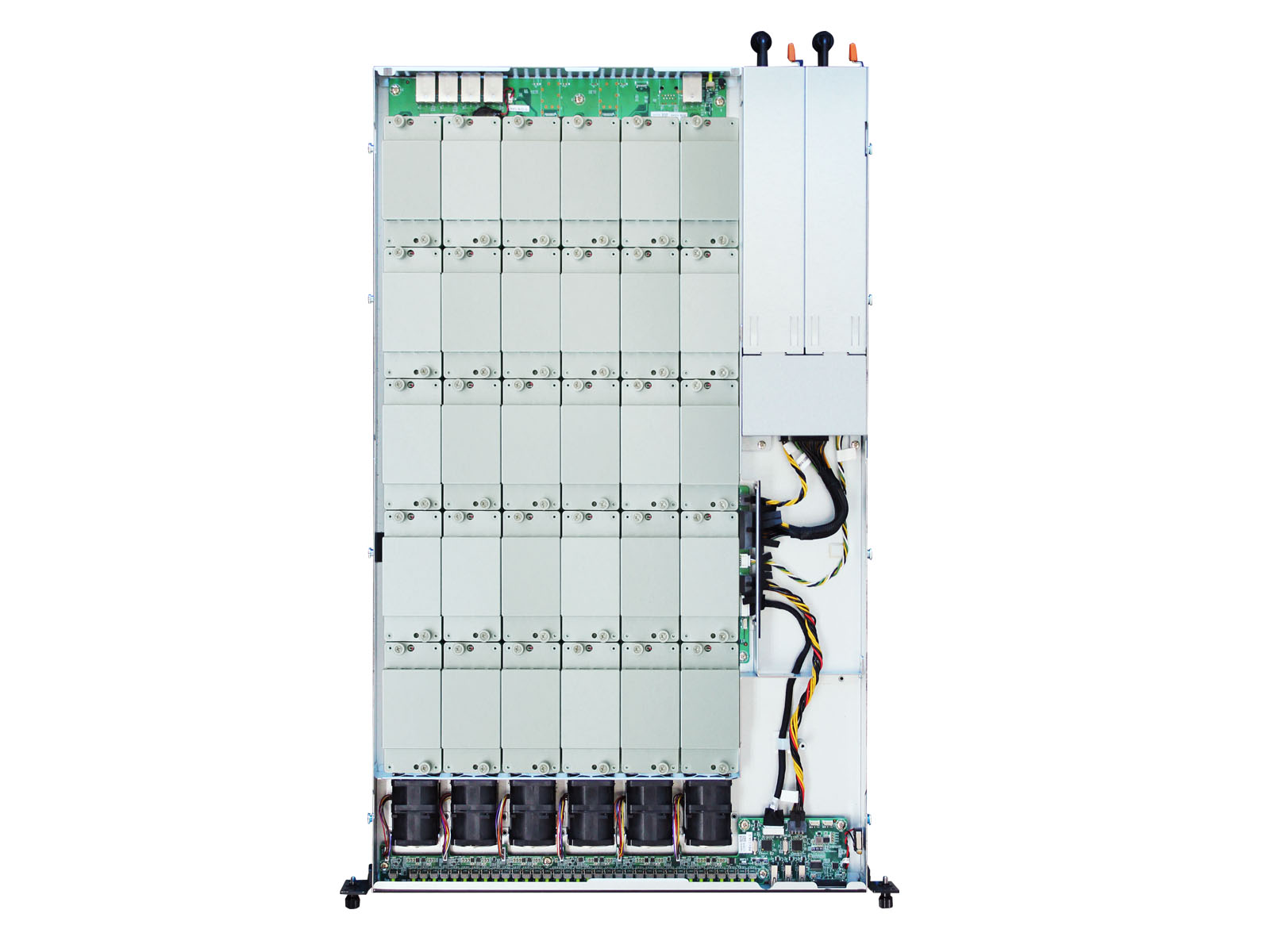

In the remote PC array ( RPA ), 30 physical PC cartridges are mounted in a 1U housing. It is a hyper-converged solution that provides all of the necessary CPU, memory, storage ( SATA ), network switch and management software to get the work done. Designed on a physical PC for remote connection, no hypervisor is required. This will dramatically shorten the cost of the infrastructure part as well as the design and construction period. It significantly reduces the cost of the entire virtual desktop system and solves many challenges traditional virtual desktops face.

Certifications

Reduce initial installation cost significantly

Reduce design construction time

Lower maintenance costs

Better performance per core

Easy to expand

1. Power Button

Press to turn on RPA200.

2. Power LED

Indicates the status of power.

3. Alert LED

Indicates system abnormalities.

4. UID ( Unit Identification ) Button

Press to turn on / off the UID LED.

5. UID LED

Identifies RPA200.

6. Remote Button

Press to switch between Remote and Local modes.

7. Remote LED

Indicates the status of Remote mode.

8. KVM Button

Press to switch between KVM and Normal modes.

9. KVM LED

Indicates the status of KVM mode.

10. Management Button

Press to switch to the Management screen.

11. Management LED

Indicates if you are on the Management screen.

12. Cartridge Button

• In Normal mode, press to turn on / off a cartridge.
• In KVM mode, press to access installed systems in a cartridge.

13. Cartridge LED

• In Normal mode, indicates the status of cartridge power.
• In KVM mode, indicates if a cartridge is selected or not.

14. USB-A Port ( USB 2.0 ) x 3

Connects to the USB device.

15. VGA Port

Connects to a monitor.

16. Hot-swappable power supply ( AC IN )

Connects to a power outlet.

17. UID Button and LED

Press to turn on / off the UID LED and identifies RPA200.

18. Management Port ( 1 Gb )

Connects to a network. ( also for system management )

19. Uplink Port x 4

Connects to a network.

Chassis

Dimensions

1U ( W ) 430 x ( H ) 43.8 x ( D ) 736.6 mm

Weight

15.8 kg ( approximate )
( including 30 cartridges fully loaded, 2 power supplies installed )

Built-in component

30 x Cartridge, 1 x KVM switch, 1 x Local Management Console ( ACM )

Power

2 x 550W Hot-plug redundant power supply

Operating humidity ( Rh )

10% ~ 90% ( non-condensing )

Operating temperature

10℃ ~ 35℃

I/O ports

Front :
1 x VGA Port
3 x USB-A Port ( USB 2.0 )
Rear :
4 x 1 GbE ( RJ-45 )
1 x ( RJ-45 ) Management Port

Cartridge

Supported OS

Microsoft Windows® 10 Pro
Microsoft Windows® 11 Pro

Processor

Intel® Celeron J6412 2 GHz ( up to 2.6 GHz )

Memory

1 x DDR4 SODIMM
up to 32 GB single channel

Storage

1 x M.2 42 mm support PCIe ( NVMe ) interface

Networking

GbE NIC Per PC Cartridge

Ethernet Switch

Port

1 GbE 44 Port ( Internal 40 Ports, External 4 Ports )

VLAN

tag / untag

LAG

Static, dynamic ( LACP )

Spanning-Tree

STP, RSTP, MSTP

Management

GUI, CLI
