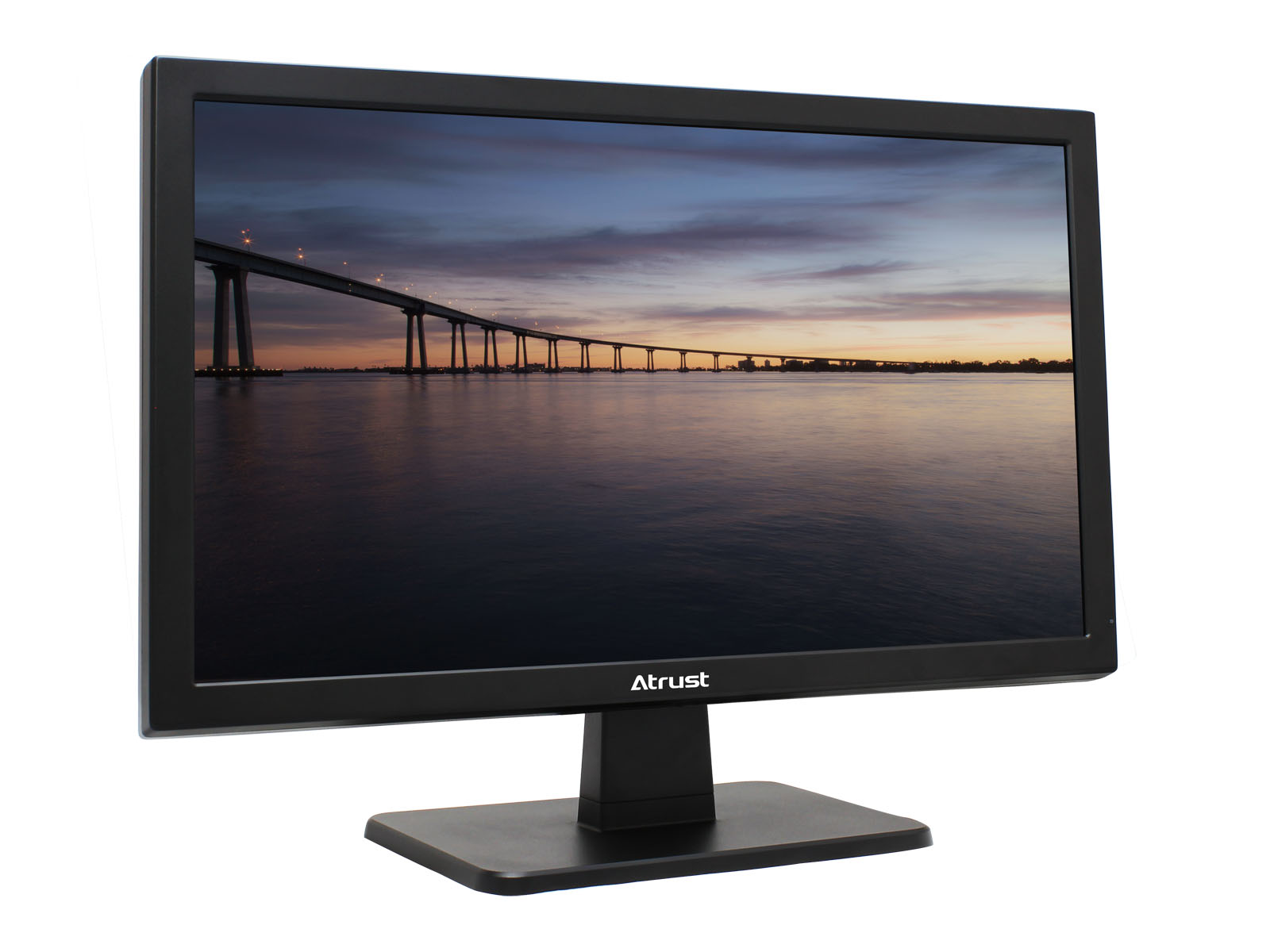

Atrust A200Z is a 23.6" PCoIP All-in-One zero client. Based on Teradici PCoIP engine, A200Z offers a rich computing experience that supports high resolution, full frame rate 3D graphics, HD video and audio, and USB peripheral connectivity. A200Z delivers the hardware acceleration user experience to task workers as well as power users in a truly uncompromised computing environment.

Certifications
Features Front / Rear View Specifications Download Accessories
Full HD
All in one, one has all. Experience thin client security and deployment integrated into a 23.6” diagonal LED backlight display & full HD resolution for a small desktop footprint.
Plug and play
Simply connect keyboard, mouse to A200Z, login at each station and you can start to play without any installation process.
Quiet design
With its fanless design, it creates a simple and noiseless workplace environment.
Compact design
The compact A200Z can fit anywhere and uses smaller desktop space.

1. Power Button

* Press to :
a ) Turn on the system.
b ) Resume from the suspend mode.
* Long press to power off the system.

2. Microphone Port

It connects to a microphone.

3. Headphone Port

It connects to a headphone or a speaker system.

4. USB-A Port ( USB 2.0 ) x 4

It connects to USB devices.

5. Kensington Security Slot

Connects to a Kensington security lock.

6. Kensington Security Slot

Connects to a Kensington security lock.

7. LAN Port

It connects to a host server through a LAN switch.

8. USB-A Port ( USB 2.0 ) x 2

It connects to USB device.

9. DVI-I Port

It connects to a monitor.

10. DC IN

It connects to an AC adapter.

Processor
Teradici® TERA2321
System memory
512 MB
Maximum resolution
23.6” LED Backlight / 1920 x 1080 pixels
I/O ports
1 x DVI-I Port
6 x USB-A Port ( USB 2.0 )
1 x Headphone Port
1 x Microphone Port
1 x LAN Port
1 x DC IN
2 x Kensington Security Slot
Ethernet
10 M / 100 M / 1 G
Dimensions
( W ) 569.6 x ( D ) 183.5 x ( H ) 412.3 mm
Weight
4.85 kg ( approximate )
Cooling
Fanless
Operating noise
No noise
Operating temperature
0℃ ~ 35℃
Non-operating temperature
-20℃ ~ 60℃
Operating humidity ( Rh )
10% ~ 90% ( non-condensing )
Non-operating humidity ( Rh )
5% ~ 95% ( non-condensing )
Operating voltage range
100 ~ 240 VAC
Rated line frequency
50 ~ 60 Hz
AC Adapter
19V, 65W, 3.42A
Protocols
Omnissa Horizon®
Download
Description
Version
Size
Download
A200Z Specification
1.0
600 KB
Download
Power Cord
AC Adapter
