t35C | Atrust

t35C

With the Citrix Ready workspace hub, Atrust introduces a new thin client t35C ( powered by Raspberry Pi 4 ). The Atrust t35C Citrix workspace hub is designed for organization looking for cost-effective and high-performance solutions for their virtual workspace needs.

With integrated WiFi and Bluetooth, Atrust t35C supports session roaming, QR code login, and screen casting. The Atrust t35C bundled with Atrust Client Setup ( ACS ) and central management tool Atrust Device Manager ( ADM ) software, management becomes simple and easy. The Atrust t35C workspace hub is complete with Skype for Business, H.264, and 2 high definition displays.

Software

Certifications

1. Power Button

Press to turn on the client.

2. DC IN

Connects to an AC adapter.

3. Micro HDMI Port x 2

Connects to external display.

4. Headphone Port

Connects to a set of headphones system.

5. Kensington Security Slot

Connects to a Kensington security lock.

6. USB-A Port ( USB 2.0 ) x 2

Connects to a USB device.

7. USB-A Port ( USB 3.2 Gen 1 ) x 2

Connects to a USB device.

8. LAN Port

Connects to a host server through a LAN switch.

Processor

Broadcom BCM2711 Quad Core 1.5 GHz 64-bit CPU

System memory

2 GB ( Manufacturing option : 4 GB )

Storage

16 GB

Maximum resolution

3840 x 2160 Dual Display @ 30 Hz
3840 x 2160 Single Display @ 60 Hz
2560 x 1600 @ 60 Hz
2560 x 1440 @ 60 Hz
1920 x 1080 @ 60 Hz ( Atrust recommendation )

I/O ports

Side :
2 x USB-A Port ( USB 3.2 Gen 1 )
2 x USB-A Port ( USB 2.0 ) ( Maximum total USB peripheral current draw is 1.2 A )
1 x LAN Port
Rear :
2 x Micro HDMI Port
1 x Headphone Port
1 x DC IN

Ethernet

10 M / 100 M / 1 G

Wireless

802.11 b / g / n / ac

Bluetooth

Bluetooth 5.0 BLE

Dimensions

( W ) 105.3 x ( D ) 76 x ( H ) 34 mm

Weight

134 g ( approximate )

Cooling

Fan ( t35C has an automatic fan control that engages when CPU temperature reaches or exceeds 80℃ )

Operating noise

No noise

Operating temperature

0℃ ~ 35℃

Non-operating temperature

-20℃ ~ 60℃

Operating humidity ( Rh )

20% ~ 80% ( non-condensing )

Non-operating humidity ( Rh )

5% ~ 95% ( non-condensing )

Operating voltage range

100 ~ 240 VAC

Rated line frequency

50 ~ 60 Hz

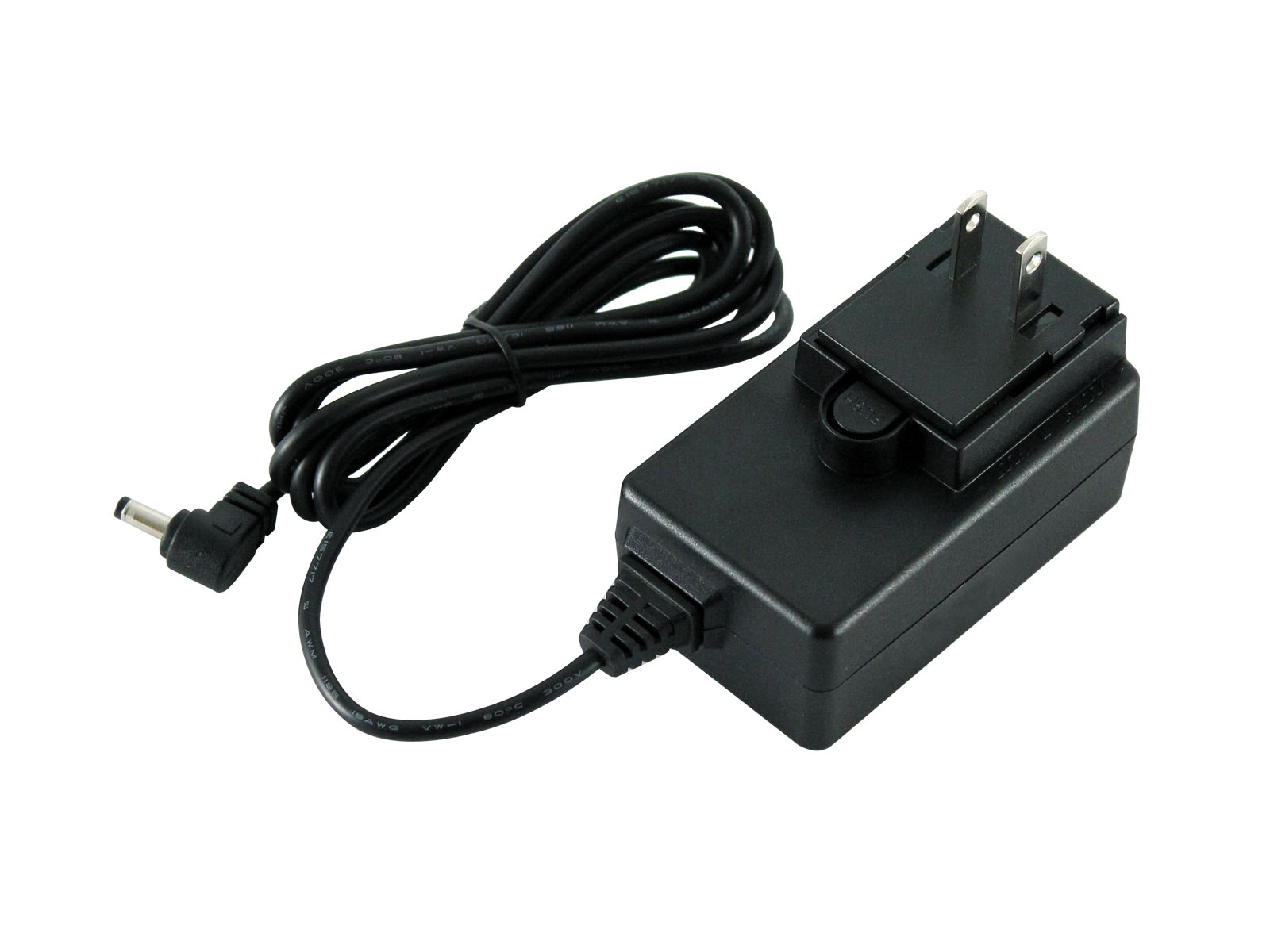

AC Adapter

5V, 3A

Operating system

Atrust OS

Management

Atrust Device Manager ( ADM )
Atrust Client Setup ( ACS )

Protocols

Citrix® ICA / HDX™

Regulatory

CE / FCC / VCCI / NRTL

Atrust Device Manager

Atrust Device Manager is a powerful software for managing a large number of thin client devices in desktop virtualization infrastructure. It enables IT administrator to remotely deploy, manage, update clients, and assist users from a single computer. The administrator can manage and update clients simply and quickly in groups with a flexible and secure mechanism. Additionally, the IT administrator can remotely assist users in resolving problems or configuring local settings.

The key features of Atrust Device Manager

● helping the management of clients (without a pre-installed operating system) devices.
● pushing custom settings to a large number of clients.
● updating firmware and installing software packages for clients.
● rebooting, powering off, and waking clients simply through the local network.
● helping users to troubleshoot problems remotely.
● identifying clients and managing IT assets with detailed client information.

Download

Description

Version

Size

Download

t35C Specification

1.0

715KB

Download
