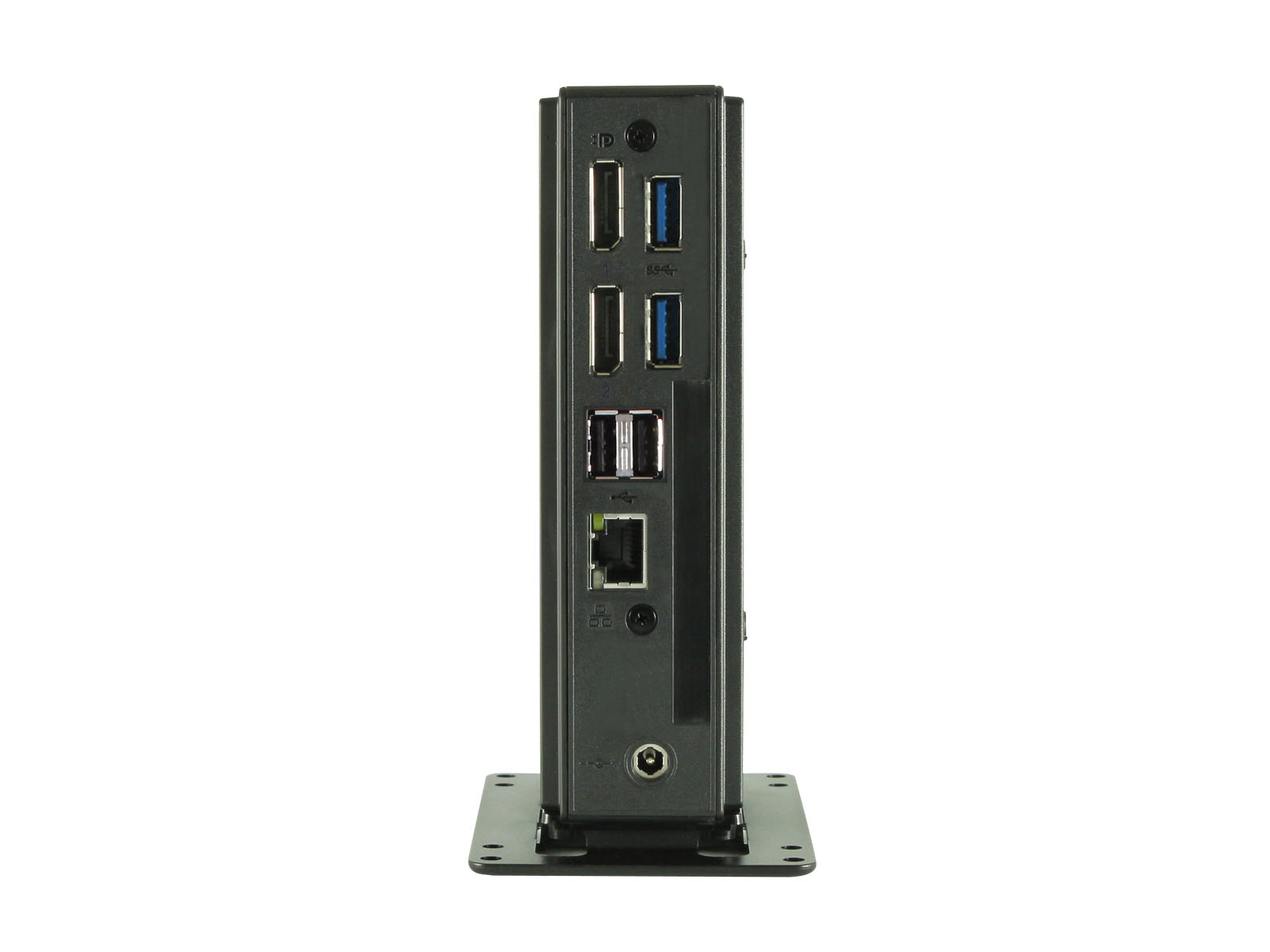

Atrust w200 is based on Teradici PCoIP engine. It offers a rich computing experience that supports high resolution, full frame rate 3D graphics, HD video and audio, dual displays and USB peripheral connectivity. Atrust w200 zero client delivers the hardware acceleration user experience to task workers as well as power users in a truly uncompromised computing environment.

Low total cost of ownership
Additional computing access is as simple as adding more I/O devices. The total cost of ownership is then drastically reduced.
Slim and quiet design
w200 weighing only 466 g ( approximate ). The slim design allows it to be mounted to the back of a monitor with a VESA mount. Together with its fanless design, w200 helps create a simple and noiseless workplace environment.
Easy management and maintenance
Since all computing tasks are mainly performed on a server, all hardware and software issues are significantly reduced on the client side. All user management, software installations, system management, and upgrades are done on a single server.

1. Power LED

Indicates the status of power.

2. Power Button

Press to turn on/off the client.

3. Audio Combo

Headphone / Microphone Combo.

4. USB-C Port ( USB 3.2 Gen 1 )

Connects to a USB device.

5. USB-A Port ( USB 2.0 )

Connects to a USB device.

6. Kensington Security Slot

Connects to a Kensington security lock.

7. Dual-Mode Displayport x 2

Connects to a monitor.

8. USB-A Port ( USB 3.2 Gen 1 ) x 2

Connects to a USB device.

9. LAN Port

Connects to a host server through a LAN switch.

10. DC IN

Connects to an AC adaptor.

Processor
AMD Ryzen™ Embedded R2312 ( Manufacturing option : R2314 )
System memory
DDR4 8 GB ( Dual channels )
Storage
eMMC 32 GB
Maximum resolution
Up to 3840 x 2160 @ 60Hz
I/O ports
Front :
2 x USB-A Port ( USB 2.0 )
1 x USB-C Port ( USB 3.2 Gen 1 )
1 x Audio Combo
Rear :
2 x Dual-Mode Displayport
2 x USB-A Port ( USB 3.2 Gen 1 )
1 x LAN Port
1 x DC IN
1 x Kensington Security Slot
Ethernet
10 M / 100 M / 1 G
Dimensions
( W ) 39.5 x ( D ) 103 x ( H ) 143 mm
Weight
466 g ( approximate )
Cooling
Fan
Operating noise
Low noise
Operating temperature
0℃ ~ 35℃
Non-operating temperature
-20℃ ~ 60℃
Operating humidity ( Rh )
10% ~ 90% ( non-condensing )
Non-operating humidity ( Rh )
5% ~ 95% ( non-condensing )
Operating voltage range
100 ~ 240 VAC
Rated line frequency
50 ~ 60 Hz
AC Adapter
2.1A + 19V DC
Operating system
Trusted Zero Client
Management
ADM ( Atrust Device Manager )
Protocols
PCoIP / PCoIP Ultra
Optional
WiFi ( 802.11 a / b / g / n / ac ) & Bluetooth Combo
* The dimensions would become ( W ) 39.5 x ( D ) 103 x ( H ) 151 mm if goes with WiFi.
