m300 | Atrust

m300

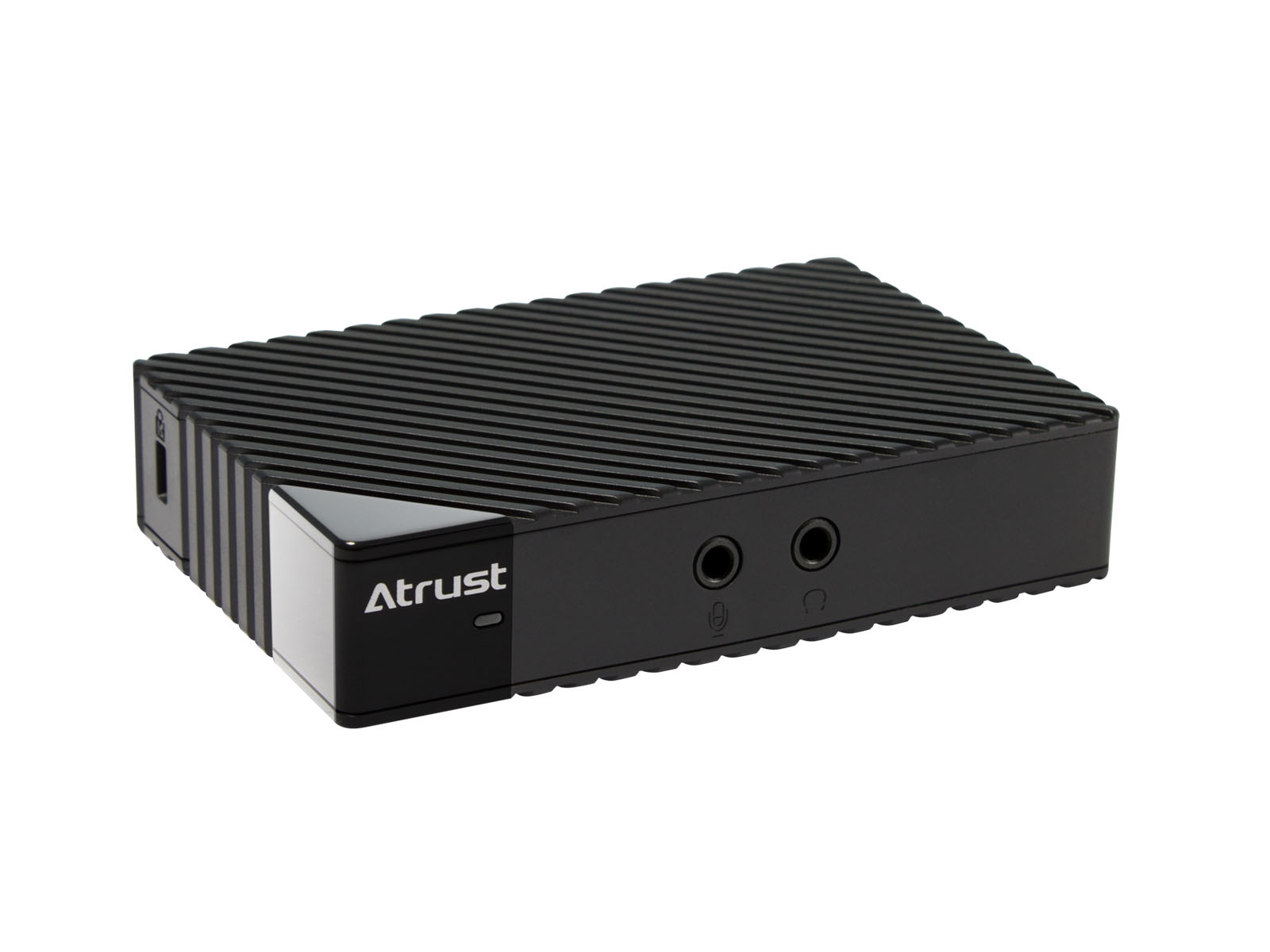

Atrust m300 is a zero client designed as an endpoint of a shared resource system, such as a MultiPoint Server or Userful Multiplatform system. The solution enables a host server to power multiple and independent stations. Each station only consists of one station hub ( zero client ) with a keyboard, mouse, and monitor connected, allowing multiple users to share the computing power of one single server. Simply through a USB connection, the server provides each station user with a familiar and independent Windows experience.

Certifications

Low total cost of ownership ( TCO )

Additional computing access is as simple as adding more I/O devices. The total cost of ownership is then drastically reduced.

Low power consumption

Powered by a host server through a USB cable, m300 significantly reduces energy consumption and improves energy efficiency.

Slim and quiet design

m300 is feather light weighing only 104g ( approximate ). The slim design allows it to be mounted to the back of a monitor with a VESA mount. Together with its fanless design, m300 helps create a simple and noiseless workplace environment.

Simple plug and play setup

Just attach a keyboard, mouse, and monitor to your m300, and then connect it to the host server. A station is set up easily and ready for use right away.

Easy management and maintenance

Since all computing tasks are performed on a server, all hardware and software issues are gone on the client side. All user management, software installations, system management, and upgrades are done on a single server.

1. Power LED

Indicates the status of electricity supply.

2. Microphone Port

Connects to a microphone or a digital musical instrument such as a MIDI keyboard.

3. Headphone Port

Connects to a headphone or a speaker system.

4. USB-A Port ( USB 2.0 )

Connects to a mouse.

5. USB-A Port ( USB 2.0 )

Connects to a keyboard.

6. USB-B Port ( USB 2.0 )

Connects to the host server.

7. VGA Port

Connects to a monitor.

8. Kensington Security Slot

Connects to a Kensington security lock.

Processor

SOC SMSC UFX6000, Elite Silicon Technology, E3869N6-A

1920 x 1080

I/O ports

1 x VGA Port
1 x USB-B Port ( USB 2.0 ) ( to the host server )
2 x USB-A Port ( USB 2.0 ) ( for keyboard and mouse )
1 x Headphone Port
1 x Microphone Port
1 x Kensington Security Slot

Dimensions

( W ) 100 x ( D ) 66 x ( H ) 23 mm

Weight

104g ( approximate )

Cooling

Fanless

Operating noise

No noise

Operating temperature

0℃ ~ 35℃

Non-operating temperature

-30℃ ~ 60℃
