t35 | Atrust

t35

Atrust t35 is a Linux-based thin client device especially designed for a client / server computing environment. Developed by Atrust, the ACS ( Atrust Client Setup ) software is also built in to help effective management of t35. With the support of Citrix® ICA / HDX™, Microsoft® RDP™ with RemoteFX™ and VMware® Horizon View™, t35 can be used to create virtual and session-based desktop experiences from many remote desktop capable operating systems. t35 offers a rich computing experience where applications look, feel, and behave as local devices, including high-definition multimedia content.

Software

Certifications

● Dual Micro HDMI Display Ports.
● Integrated with Atrust Device Manager software.
● Broadcom BCM2711 Quad Core 1.5GHz 64-bit CPU.
● Support for WiFi.
● Low power consumption.

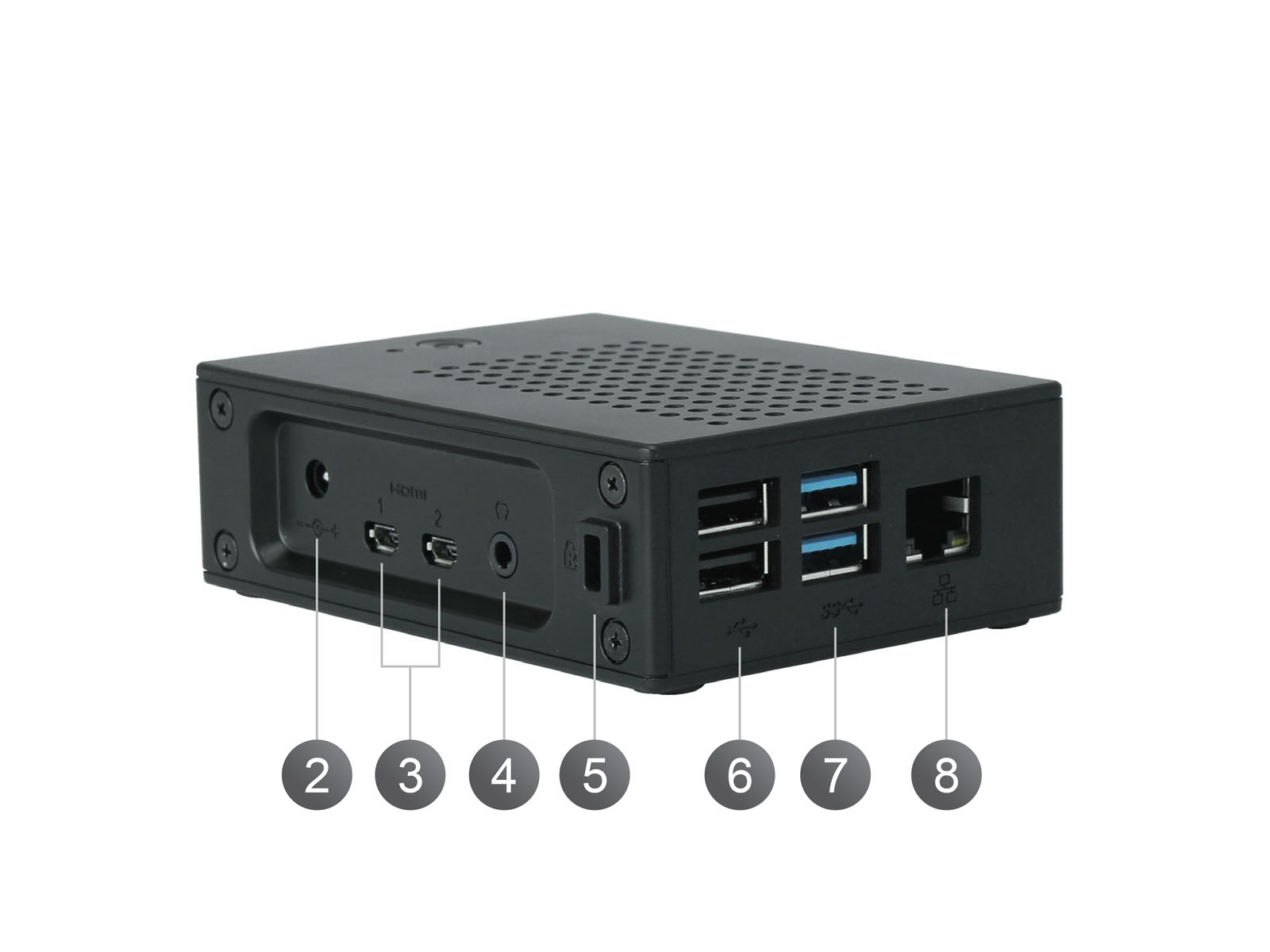

1. Power Button

Press to turn on the client.

2. DC IN

Connects to an AC adapter.

3. Micro HDMI Port x 2

Connects to external display.

4. Headphone Port

Connects to a set of headphones system.

5. Kensington Security Slot

Connects to a Kensington security lock.

6. USB-A Port ( USB 2.0 ) x 2

Connects to a USB device.

7. USB-A Port ( USB 3.2 Gen 1 ) x 2

Connects to a USB device.

8. LAN Port

Connects to a host server through a LAN switch.

Processor

Broadcom BCM2711 Quad Core 1.5 GHz 64-bit CPU

System memory

2 GB ( Manufacturing option : 4 GB )

Storage

16 GB

Maximum resolution

3840 x 2160 Dual Display @ 30 Hz
3840 x 2160 Single Display @ 60 Hz
2560 x 1600 @ 60 Hz
2560 x 1440 @ 60 Hz
1920 x 1080 @ 60 Hz

Atrust recommendation :
Citrix ICA / HDX : 1920 x 1080 @ 60 Hz
Microsoft RDP with RemoteFX : 2560 x 1600 @ 60 Hz
VMware Horizon View : 2560 x 1600 @ 60 Hz

I/O ports

Side :
2 x USB-A Port ( USB 3.2 Gen 1 )
2 x USB-A Port ( USB 2.0 ) ( Maximum total USB peripheral current draw is 1.2 A )
1 x LAN Port
Rear :
2 x Micro HDMI Port
1 x Headphone Port
1 x DC IN

Ethernet

10 M / 100 M / 1 G

Wireless

802.11 b / g / n / ac

Bluetooth

Bluetooth 5.0 BLE

Dimensions

( W ) 105.3 x ( D ) 76 x ( H ) 34 mm

Weight

134 g ( approximate )

Cooling

Fan ( t35 has an automatic fan control that engages when CPU temperature reaches or exceeds 80℃ )

Operating noise

No noise

Operating temperature

0℃ ~ 35℃

Non-operating temperature

-20℃ ~ 60℃

Operating humidity ( Rh )

20% ~ 80% ( non-condensing )

Non-operating humidity ( Rh )

5% ~ 95% ( non-condensing )

Operating voltage range

100 ~ 240 VAC

Rated line frequency

50 ~ 60 Hz

AC Adapter

5V, 3A

Operating system

Atrust OS

Management

Atrust Device Manager ( ADM )
Atrust Client Setup ( ACS )

Protocols

Citrix® ICA / HDX™
Microsoft® RDP™ with RemoteFX™
VMware® Horizon View™ ( PCoIP / RDP / Blast )

Regulatory

CE / FCC / VCCI / NRTL

Atrust Device Manager

Atrust Device Manager is a powerful software for managing a large number of thin client devices in desktop virtualization infrastructure. It enables IT administrator to remotely deploy, manage, update clients, and assist users from a single computer. The administrator can manage and update clients simply and quickly in groups with a flexible and secure mechanism. Additionally, the IT administrator can remotely assist users in resolving problems or configuring local settings.

The key features of Atrust Device Manager

● helping the management of clients (without a pre-installed operating system) devices.
● pushing custom settings to a large number of clients.
● updating firmware and installing software packages for clients.
● rebooting, powering off, and waking clients simply through the local network.
● helping users to troubleshoot problems remotely.
● identifying clients and managing IT assets with detailed client information.
