mt189W | Atrust

mt189W

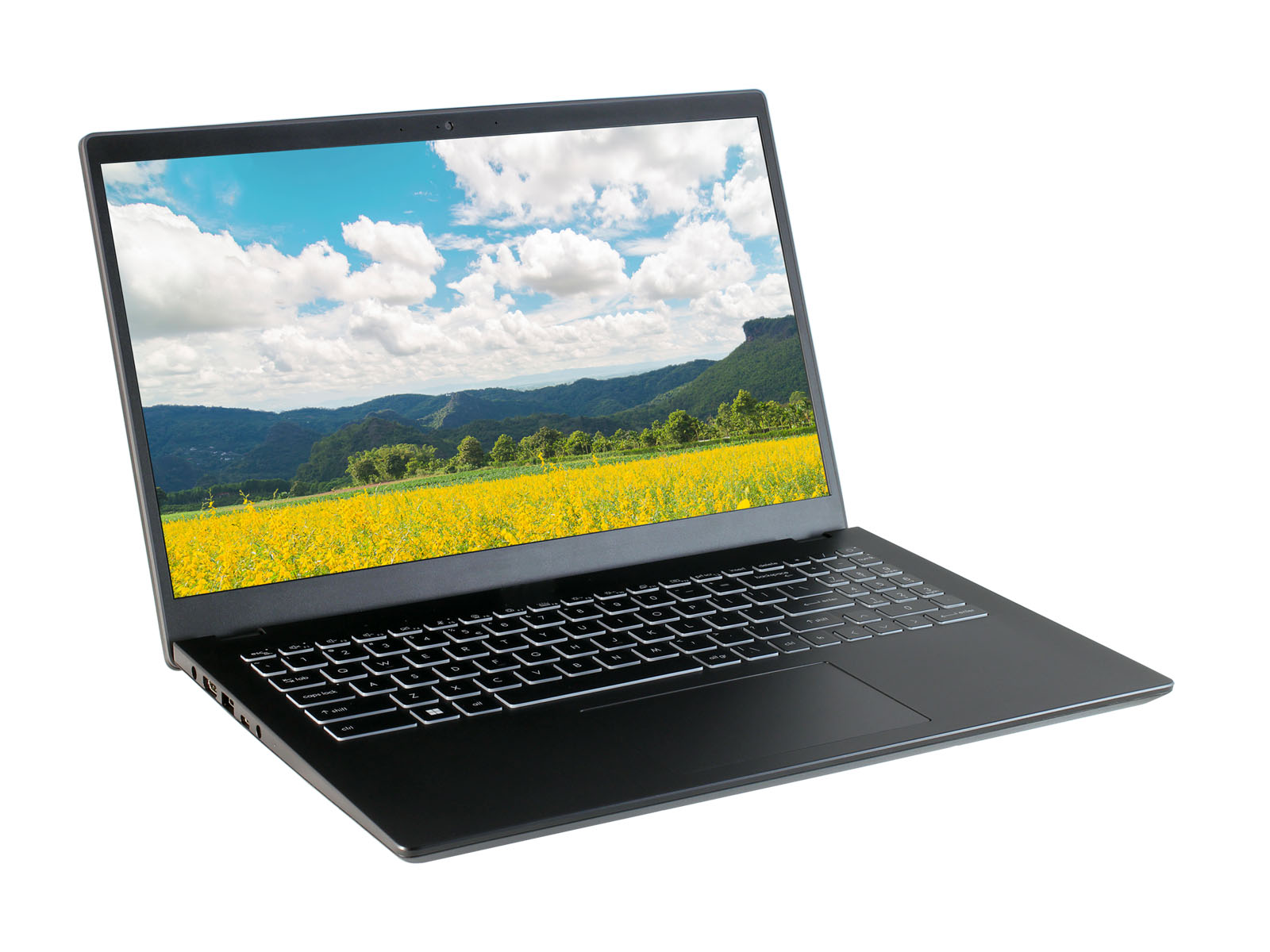

Atrust mt189W is a 15” Windows OS based mobile thin client device especially designed for the mobile worker client / server computing environment. Atrust mt189W is a highly secure mobile thin client which stores all data and safe accessed on remotely server. With the support of Citrix ICA / HDX, Microsoft RDP and Omnissa Horizon®, mt189W can be used to create virtual and session based desktop experiences from many remote desktop capable operating systems, which delivers the mobile workers a rich remote user experience.

Low total cost of ownership

Additional computing access is as simple as adding more I/O devices. The total cost of ownership is then drastically reduced.

Simple click and play

mt189W connects to the host server with a Remote Desktop connection. Just click the shortcut for a Remote Desktop session, you can immediately start a session and enjoy the computing resources.

Rich remote user experience

With Citrix HDX / ICA, Microsoft RDP and Omnissa Horizon®, mt189W can provide a rich, efficient, and "local" computing experience for remote users.

Easy management and maintenance

Since all computing tasks are mainly performed on a server, all hardware and software issues are significantly reduced on the client side. All user management, software installations, system management, and upgrades are done on a single server.

1. Power Button / LED

Press to turn on the client / Indicates the status of power on.

2. WebCam

Built-in web camera.

3. Keyboard

Built-in keyboard for control and input.

4. Touchpad

Built-in pointing device for control and input.

5. Speakers

Built-in speaker for audio output.

6. USB-A Port ( USB 2.0 ) X 2

Connects to a USB device.

7. DC IN

Connects to an AC adapter.

8. HDMI® Port

Connects to external display.

9. USB-A Port ( USB 3.2 Gen 1 )

Connects to a USB device.

10. USB-C Port ( USB 3.2 Gen 2 )

Connects to a USB device, Support USB-C charging / display.

11. Audio Combo Jack

Headphone / Microphone Combo.

12. Battery LED

Indicates the status of charging the battery.

Processor

AMD Ryzen™ Embedded R2314 ( Manufacturing option : R2312 )

System memory

8 GB ( Manufacturing option : 16 GB )

Storage

64 GB ( Manufacturing option : 128 GB / 256 GB )

LCD Type / Resolution

15" / 1920 x 1080 FHD, LED backlit
HDMI® Port : Up to 4096 x 2160 @ 60Hz
Type-C Display : Up to 3840 x 2160 @ 60Hz

I/O ports

1 x HDMI® Port
1 x USB-A Port ( USB 3.2 Gen 1 )
2 x USB-A Port ( USB 2.0 )
1 x USB-C Port ( USB 3.2 Gen 2 )
1 x Audio Combo Jack
1 x Webcam
2 x 2W Internal Speaker
1 x Internal Microphone
1 x DC IN

Ethernet

USB-A Port ( USB 3.2 Gen 1 ) to Gigabit Ethernet Adapter

Wireless

IEEE 802.11 a / b / g / n / ac / ax

Keyboard

LED backlit keyboard

Touch Pad

Click button integrated touchpad

Dimensions

( W ) 359 x ( D ) 241 x ( H ) 19.9 mm

Weight

1.93 kg ( approximate )

Operating temperature

5℃ ~ 35℃

Non-operating temperature

-20℃ ~ 60℃

Operating humidity ( Rh )

10% ~ 90% ( non-condensing )

Non-operating humidity ( Rh )

5% ~ 95% ( non-condensing )

AC Adapter

USB Type-C : 65W USB-C Power Adapter, 20V / 3.25A
AC Adapter : 19V, 65W, 3.42A ( Optional )

Battery capacity

52.4 WHrs, 3S1P, 3-cell Li-ion
Average Time : 6 h ( approximate )

NOTE : The battery charges very slow under 10 degrees Celsius ( 50 degrees Fahrenheit ) or above 35 degrees Celsius ( 95 degrees Fahrenheit ). This is a natural limitation of battery cell technology. It is recommended to charge your battery above 10 degrees Celsius ( 50 degrees Fahrenheit ) and under 35 degrees Celsius ( 95 degrees Fahrenheit ). Note: Tolerance ±2ºC

Operating system

Windows® 11 IoT Enterprise LTSC 2024

Management

Atrust Device Manager ( ADM )
Atrust Client Setup ( ACS )

Protocols

Citrix® ICA / HDX™
Microsoft® RDP™ with RemoteFX™
Microsoft® Remote Desktop for Azure Virtual Desktop and Windows 365
Omnissa Horizon®

Optional

Default fTPM 2.0 ( Manufacturing option : dTPM 2.0 )

Atrust Device Manager

Atrust Device Manager is a powerful software for managing a large number of thin client devices in desktop virtualization infrastructure. It enables IT administrator to remotely deploy, manage, update clients, and assist users from a single computer. The administrator can manage and update clients simply and quickly in groups with a flexible and secure mechanism. Additionally, the IT administrator can remotely assist users in resolving problems or configuring local settings.

The key features of Atrust Device Manager

● helping the management of clients ( without a pre-installed operating system ) devices.
● pushing custom settings to a large number of clients.
● updating firmware and installing software packages for clients.
● rebooting, powering off, and waking clients simply through the local network.
● helping users to troubleshoot problems remotely.
● identifying clients and managing IT assets with detailed client information.
